TMC Reef Pump

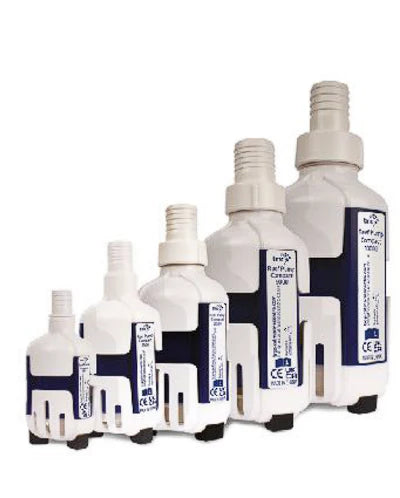

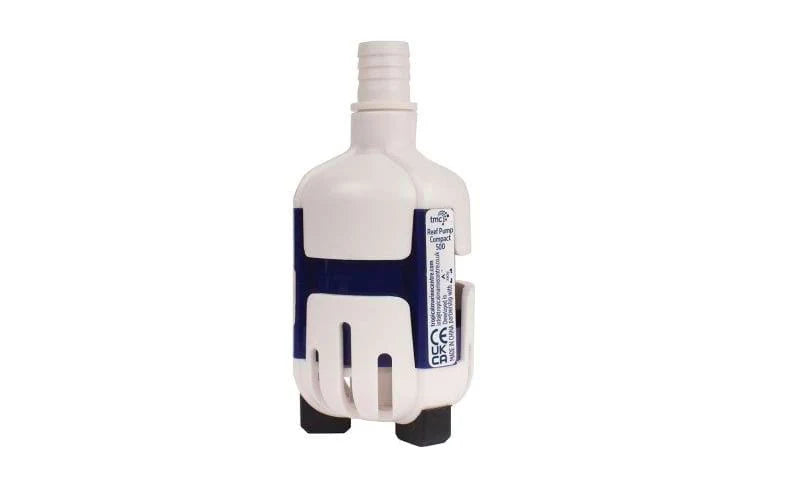

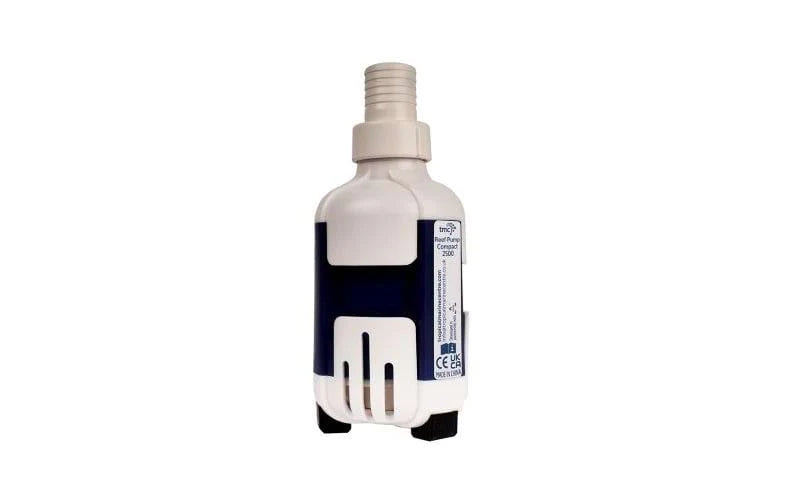

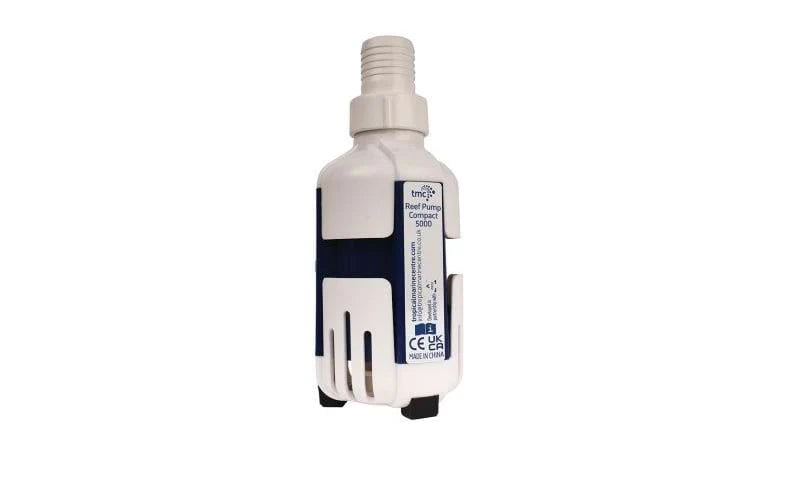

Reef Pump Compact



High quality, ultra-compact DC pumps suitable for salt and freshwater aquariums.



• Unique ultra-compact space-saving design enabling easy installation in small aquariums and sumps where space is a premium.

• Incorporates the latest electronic pump technology for high power and flow rates combined with efficient energy consumption.

• Base fed water intake ensures small footprint and ability to work in low level water.

• Perfect to help with water changes.

• Low voltage.

• Variable speed control with up to 10 different speed settings, offering precise adjustment of water flow for optimum performance.

• Super quiet running.

• Integrated 10-minute feed timer to allow easy feeding.

• Soft start feature to increase impeller life.

• Incorporates a unique self-cooling system which channels water around the motor to ensure optimum operating temperatures.



Model	350	500	1500	2500	5000	10000
Max Flow	92gph	162gph	396gph	660gph	1320gph	2640gph
Max Power	11w	10w	20w	40w	90w	110w
Voltage	12v	12v	24v	24v	24v	24v
PSU Voltage		100-240v - 50/60Hz
Max Head	8.2ft	4.9ft	11.5ft	11.5ft	16ft	13ft
Outlet	.5/.6"	.4/.5"	.6/.8"	.8/1.0"	1/1.25"	1.25"
Dimensions	1.7x1.7x3.7"	2.1x2.2x4.5"	2.4x2.5x5.6"	2.9x2.9x6.7"	3.4x3.5x8.3"	4.0x4.2x9.6"
