Lifegard Aquatics Quiet One 1584 DC Pump

Quiet One DC Pump 1584 GPH, Max Head 16.4', with Controller



Part No. R440721

Model DC 1584 with Controller

GPH 1584

Max Ht. Ft. 16.4

Voltage: DC 24V

Watt 72



Suction: 1” and 1.25" Hose Connection

Discharge Strainer or 1” and 1.25" Hose Connection

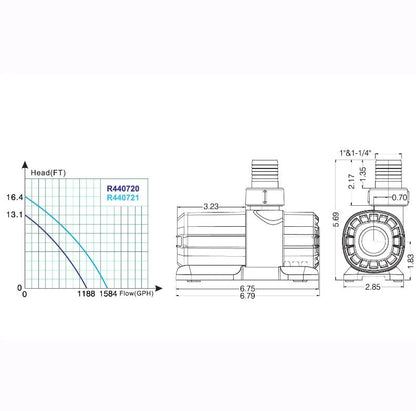

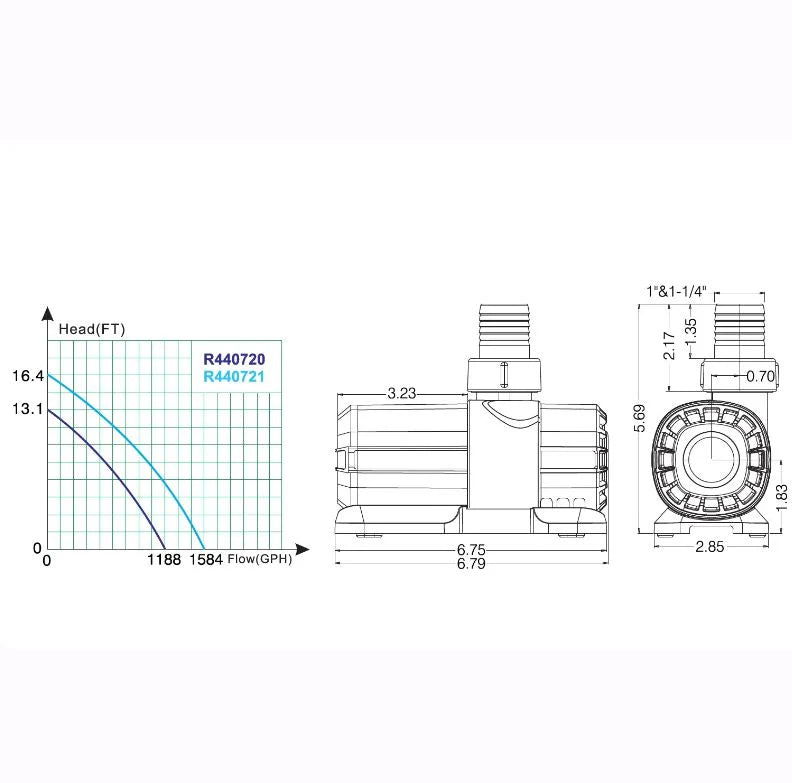

Pump Dimensions (LxWxH): 6.79" x 2.85" x 5.69"

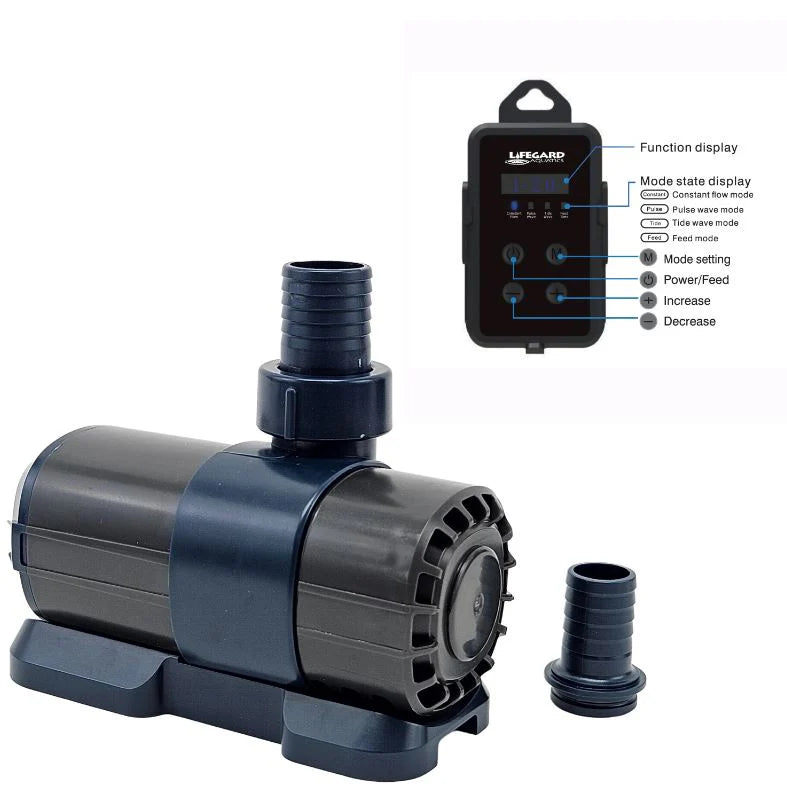

Controller Mode:



Constant Flow Mode: The water flow stays constant but you can control the intensity of the flow from level lowest -1 to strongest level-20. 1 = Min Power Consumption



Constant Flow Mode: The water flows in a wave format with high flow followed by low flow. The high and low intensity wave duration stays the same. You can control the intensity of the wave from level lowest -1 to strongest level-20. 1 = Min Power Consumption



Tide Flow Mode: The water flows in a longer wave format with high flow followed by low flow. The high tide duration is longer than the low tide duration. You can control the intensity of the wave from level lowest -1 to strongest level-20. 1 = Min Power Consumption



Feed Mode: By pressing the power button on the controller you can select the feeding duration. While the pump is on press the power button once, the display shows F-10 the pump shuts for 10 minutes. Press the power button twice, the display shows F-20 the pump shuts for 20 minutes. Press the power button three times, the display shows F-30 the pump shuts for 30 minutes. After the feeding time is over the pump goes back to the last setting.



For Submersible or External Applications in Salt or Freshwater Aquariums.



Extremely quiet operation…so quiet you’ll swear it’s not running.

Safe for Salt or Freshwater applications.

Use with all types of filters. Includes 6’cord.

ECO-SAV™ runs cooler and generates more power with less energy consumption.

Internal recirculation prevents overheating and ejects obstructing debris.

Remarkable impeller technology provides combined rotors, improved shaft materials and corrosion resistant bearings.

EZ access cover allows ease of maintenance of rotor, shaft and removable impellers.

Innovative “cooling chambers” provide air-cooling during dry use and water-cooling in wet applications.



Pre-filter Grill with Flow Control Valve in submersible applications.



Part #	R440720	R440721	R440722	R440723
Flow(GPH)	1188	1584	2640	3168
Head(FT)	13.1	16.4	14.8	16.4
Voltage	DC24V
Power	48w	72w	96w	105w
Hose Connector	1 & 1.25"		1.25" & 1.5"
Dimensions	6.79x2.85x5.69"	6.79x2.85x5.69"	8x3.35x6.7"	8x3.35x6.7"
