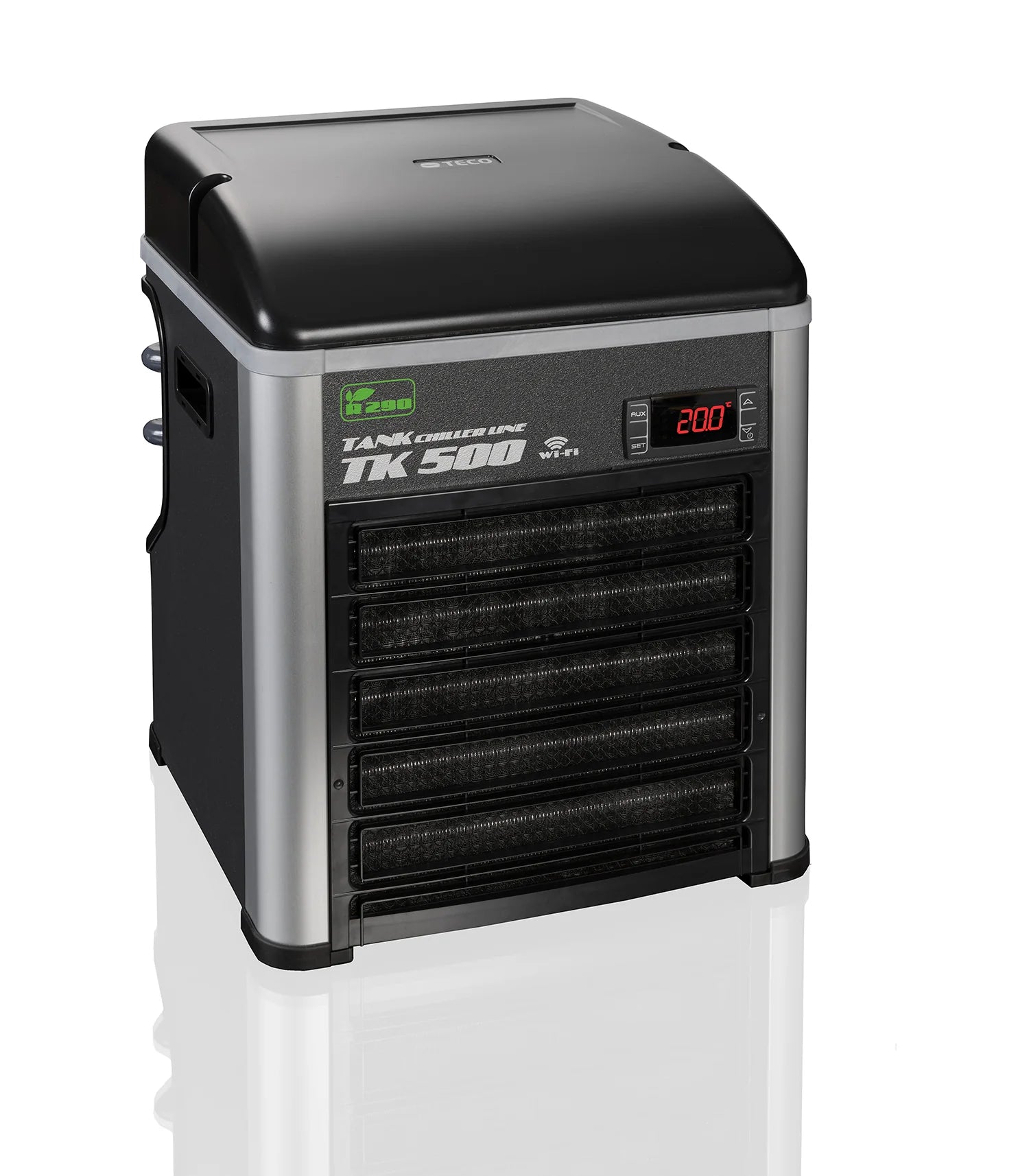

TECO TK500H 1/6HP Chiller & Heater

Chiller + Heater for standard systems & aquariums up to 120 gallons

The new TANK® chiller line is the next generation of TECO's flagship SeaChill™ aquarium chillers—used by consumers and professionals for over a decade. The TECO TANK is the result of one of TECO's most ambitious and comprehensive redesigns of the SeaChill aquarium chiller to-date. New changes include an increase in cooling efficiency and improved usability, functionality, and durability.

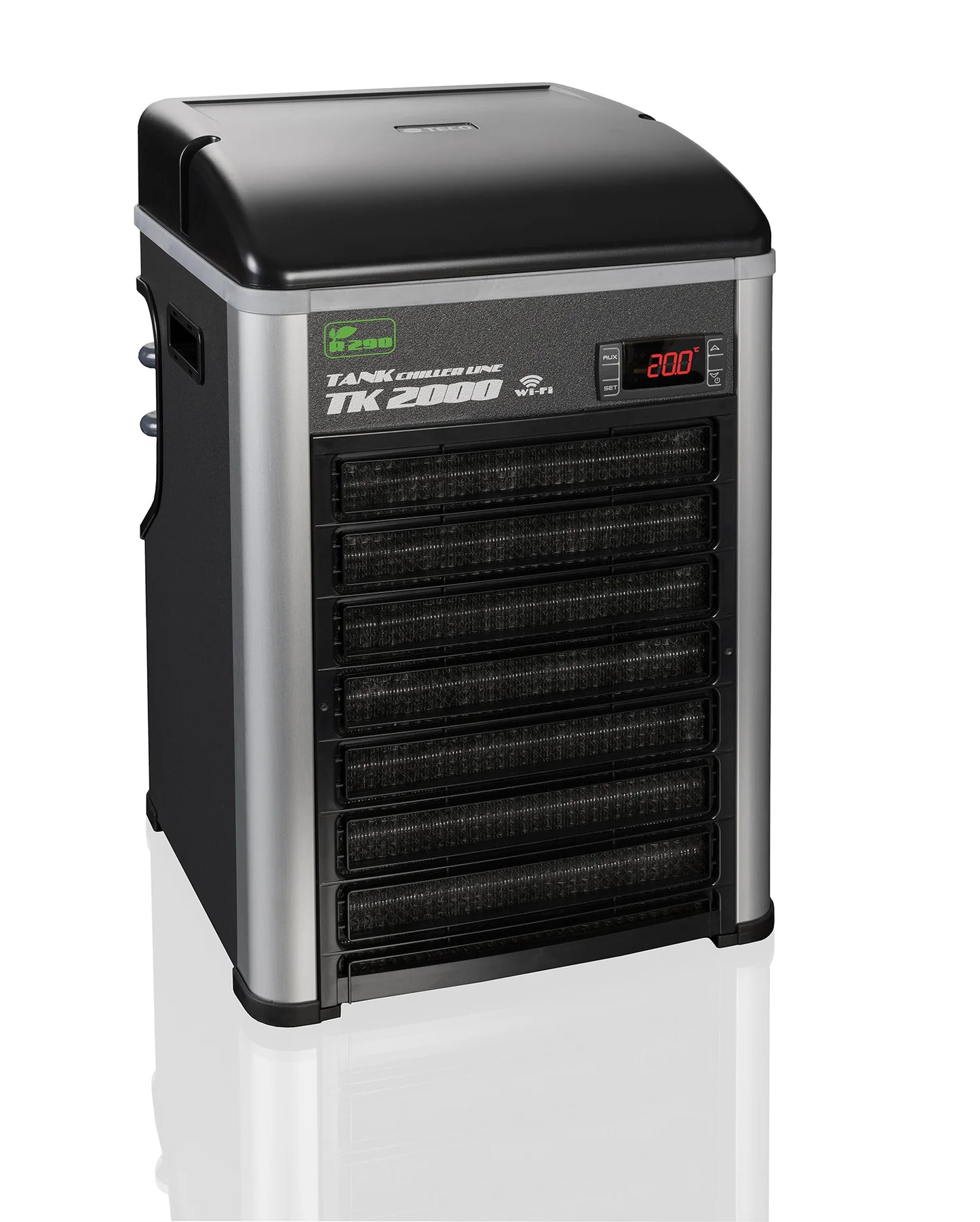

Teco has once again reshaped the chiller industry by introducing the most energy-efficient and environmentally friendly chiller to date for the Aquarium Tank and Hydroponic industries. Centered around a proven Hydrocarbon refrigerant compressor with R290 coolant, the new Teco CHILLER ONLY models, 500, 1000, and 2000 chillers can easily outperform traditional compressors by cutting energy consumption by 30% to 50%. Additionally, R290’s environmentally friendly characteristics mean a dramatic decrease in the earth’s ozone destruction by up to 600 times over traditional chiller coolants.



Less operating cost and more of Earth’s ozone sound like a winning combination for everyone!



Reduces energy consumption by 30% to 50%

Replaces traditional ozone-damaging refrigerants

Scores 3 out of 150 on Global Warming Potential (GWP) scale



Internationally-recognized high-end compressors and titanium coaxial heat exchangers provide high performance, low energy consumption, and low noise levels.



Intuitive controller with accurate temperature detection from 32 to 95°F. Closed loop temperature control system with an extremely tight differential of 1°C. Displays in °F or °C, and audible alarms for certain situations.



A solid and durable structure designed to guarantee near perfect protection against corrosion. Rotatable in-set water connections and smaller form-factor help facilitate placement of chiller in confined spaces.

SPECS:

Aquarium Size	up to 120 gallons
Horsepower	1/6 HP
Wifi Capable	Yes
Built-in Heater	No
Maximum Pressure	8.7 psi
Minimum Flow Rate	106 gallons per hour
Maximum Flow Rate	211 gallons per hour
In/Out Water Connection	5/8" Inside Diameter (ID) (0.63" or 16 mm)
Exchanger	Titanium
Supply	120V-60Hz
Power Consumption	225 Watts
Gas/Refrigerant	R290
Minimum Set Point	41°F
Maximum Set Point	95°F
Weight	36.4 lbs (16.5 kg)
Dimensions	12.2" x 12.2" x 16.38"



The ability of the TK-500 to pull down temperatures in a 86°F room:



Aquarium Size Temp. Attainable Heating Load Net Pull-Down C.O.P.*

40 gallons 77°F  from 86°F 1.89 Watts/gal 9°F cooler 2.0

* Coefficient of Performance (COP) - a numerical value that represents cooling performance from a baseline room temperature of 86°F and a typical heat source (aka. Heating Load)
